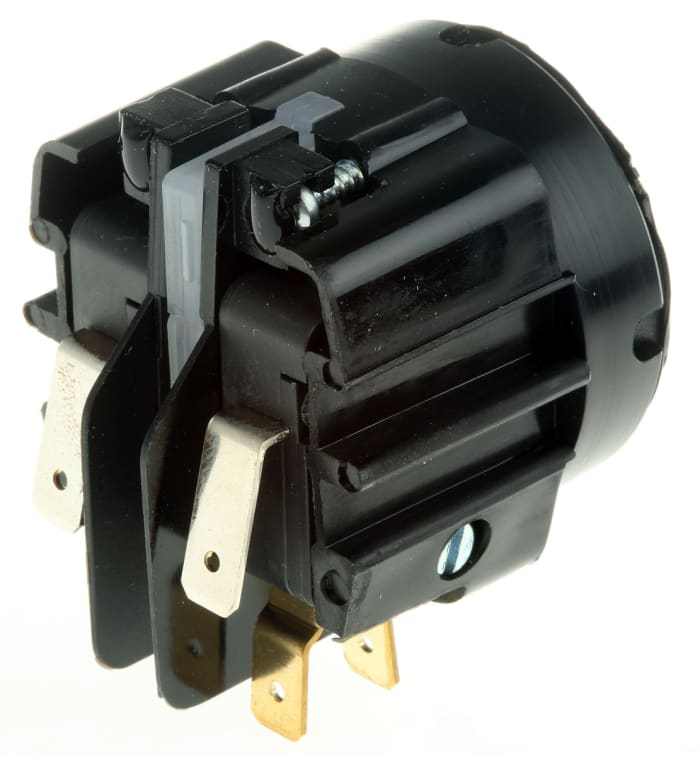

Interruptor neumático Superficie Interruptor neumático RS PRO serie 686

La unidad del interruptor de acción momentánea incorpora dos contactos de microinterruptor SPDT, con un interruptor en funcionamiento antes que el otro, es decir, se requiere un aumento de la presión aplicada sobre el actuador para que funcione el segundo interruptor
La unidad de interruptor de acción alterna incorpora dos contactos de microinterruptor SPDT, en funcionamiento simultáneo
Cada interruptor ofrece un valor nominal de 15 A, 250 Va.c. Montados con cuatro tornillos autorroscantes Nº 4
Presión de funcionamiento 1,2 psi
Presión máxima 15 psi

The air operated switch system offers enhanced safety in hazardous areas by allowing remote operation of electrical circuits.
The actuator is a bellows which, when compressed moves air down the air tubing to the switch element. This compressed air then expands a bellows in the switch, which operates the electrical contacts.
When used in wet environments or where electrical switching would be dangerous due to arcing, the switch and all electrical wiring can be located outside the hazardous area giving the operator total electrical isolation for the equipment.
Such applications include: Battery charging rooms, laboratories, garages, or wherever explosive gases, vapours or powders may exist.

When assembled the air switch and actuator form a sealed system, therefore temperature variation will cause pressure changes, which can in extreme cases affect the performance of the switch. To prevent this the total volume of the system must be kept below a critical value for a given temperature range and, to this end, a maximum length of air tubing (and hence volume) can be given for any combination of switch and actuator.
The additional data tables give these lengths in metres; for moderate and extreme temperatures.
