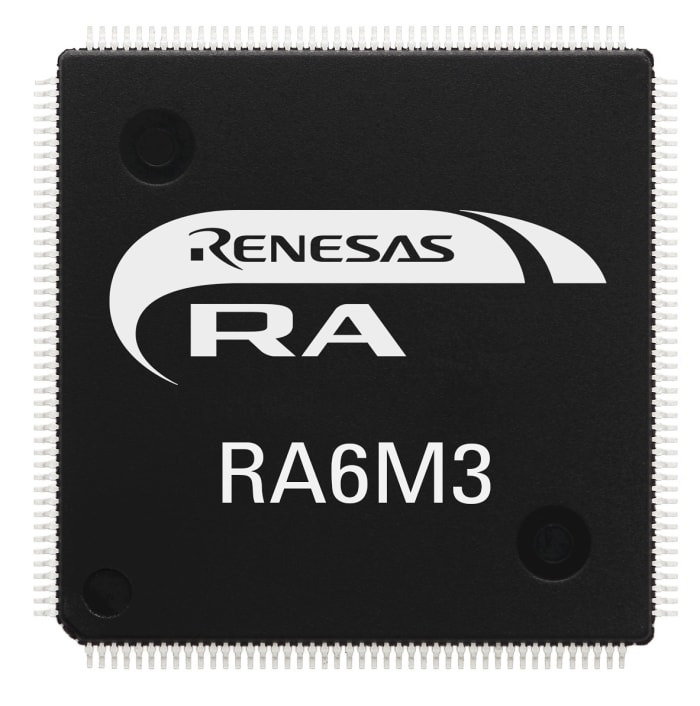

Microcontrolador Renesas Electronics, núcleo ARM Cortex M4 de 32 bit 1MB, 640 kB RAM, 120 MHZ Flash, LQFP de 144 pines

The Renesas RA6M3 group uses the high-performance Arm® Cortex®-M4F core and offers a TFT controller with 2D accelerator and JPEG decoder. In addition RA6M3 offers Ethernet MAC with individual DMA and USB High Speed interface to ensure high data throughput. The RA6M2 is built on a highly efficient 40nm process and is supported by an open and flexible ecosystem concept—the Flexible Software Package (FSP), built on FreeRTOS—and is expandable to use other RTOSes and middleware. The RA6M3 is suitable for IoT application requiring TFT, Ethernet, Security, large embedded RAM and USB HS.

• 120MHz Arm® Cortex®-M4F
• 1MB-2MB Flash Memory and 640kB SRAM
• 64kB DataFlash to store data as in EEPROM
• Scalable from 100pin to 176 pin Packages
• Ethernet Controller with DMA
• TFT Controller /2D Accelerator/JPEG Decoder
• Capacitive Touch Sensing Unit
• USB2.0 Full Speed / USB High Speed
• CAN 2.0B
• SCI (UART, Simple SPI, Simple I2C)
• SPI/ I2C Multimaster Interface /SDHI
• Applications
• HMI (small/mid size TFT)
• Applications with demand for High Speed USB and Wired Ethernet Applications
• Security (Fire Detection, Burglar Detection, Panel Control)
• Industry (Robotics, Door Openers, Sewing Machines, Vending Machines, UPS)
• HVAC (Heating, Air Conditioning, Boiler Control)
• General Purpose
